The AEA philosophy in a compressor

Designed to pair well with our TRP and RPQ series preamps, the 1029 Stereo VCA compressor is the perfect addition to any studio.

Simple, straightforward design

With a proprietary discreet op-amp design by Fred Forssell the AEA 1029 utilizes two THAT 4305 VCA chips run off of a single RMS detector being fed by the summed input signals. This product was primarily designed for the recording and/or mixing of stereo microphones.

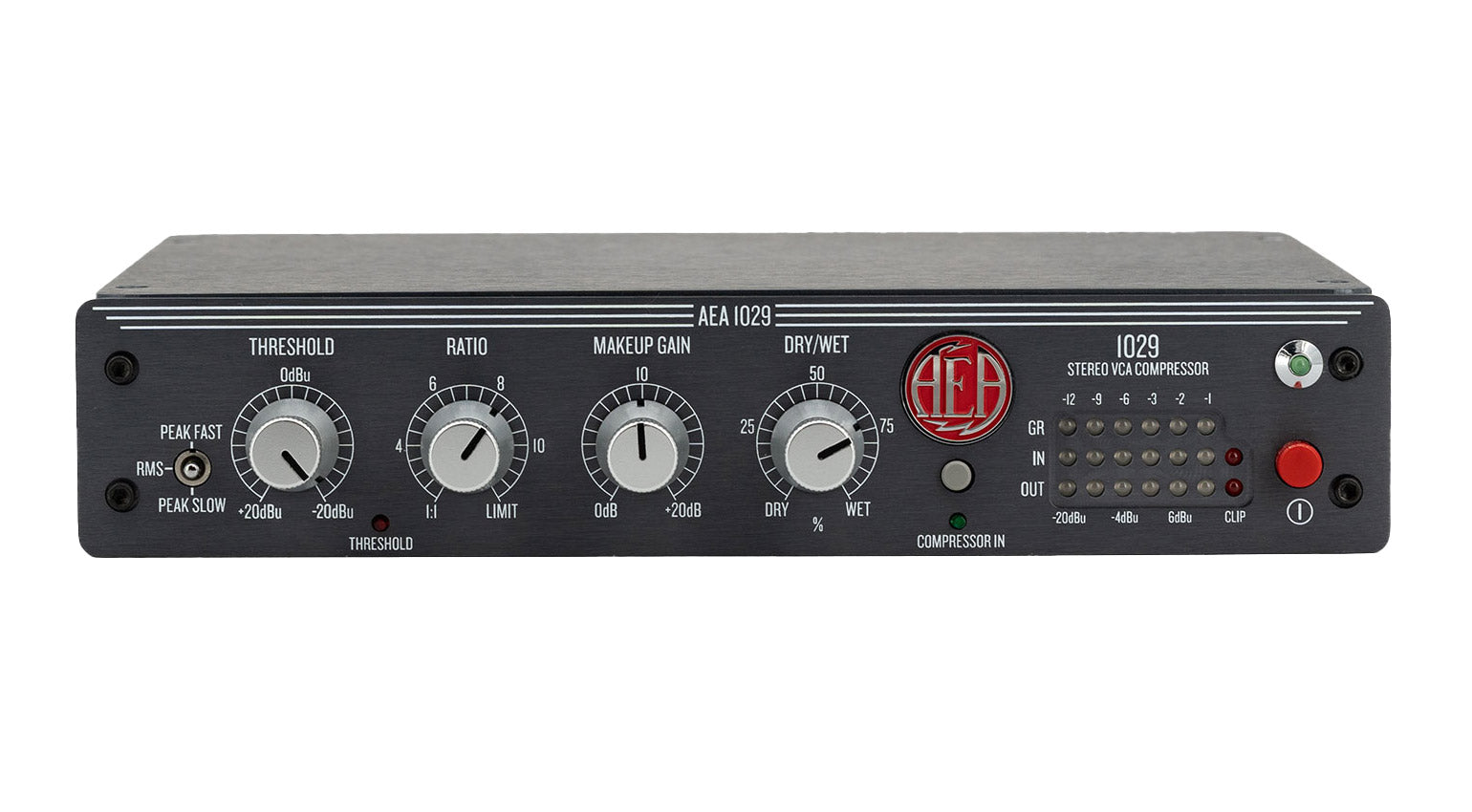

Feature set
• Half-rack form factor

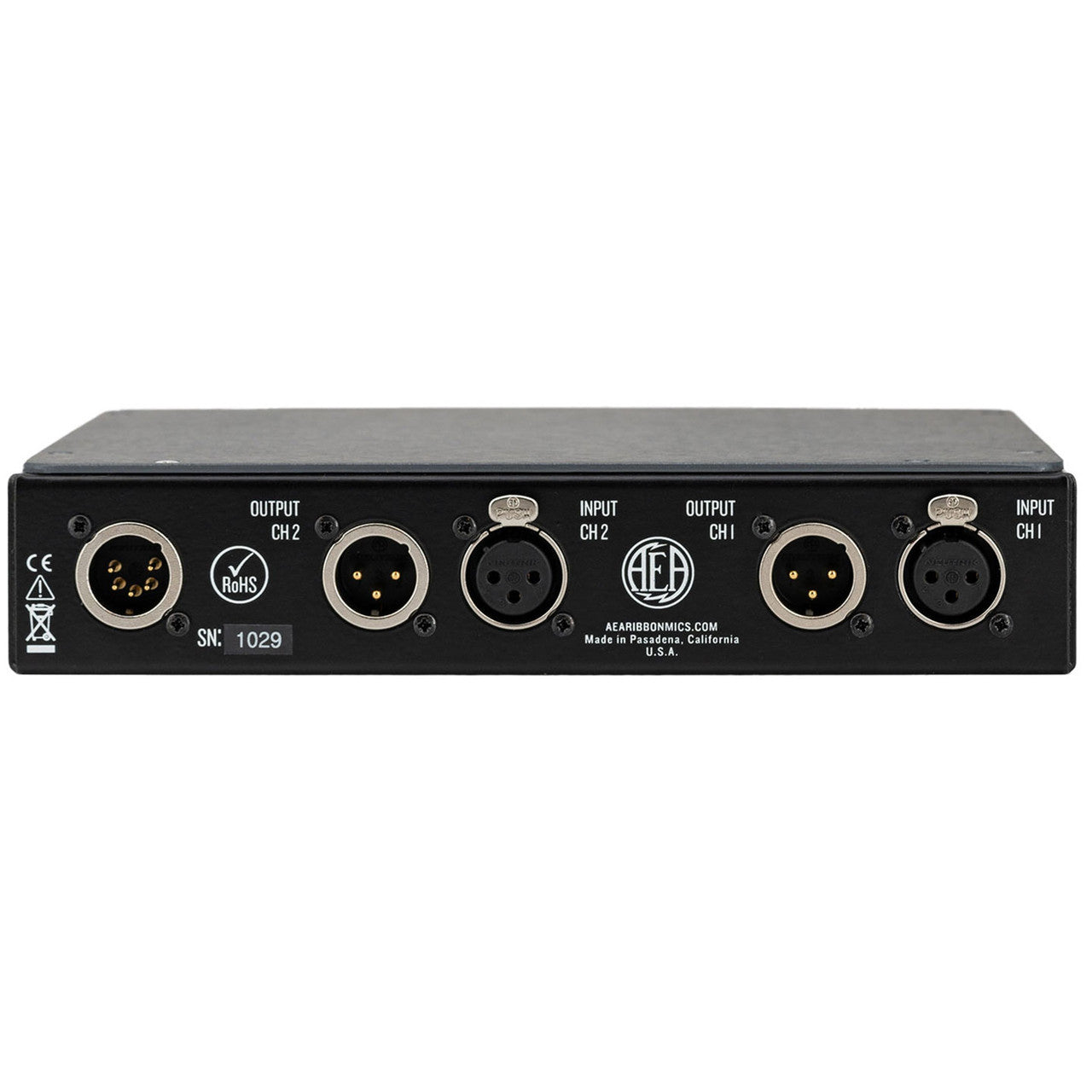

• 2 channels of XLR in and out
• 3 position Peak Fast, RMS, and Peak Slow sensing times
• Variable threshold from -20dBu to 20dBu
• Variable ratio from 1:1 - Limit
• Up to 20dB of makeup gain
• Dry/Wet percentage control knob
• True bypass relay switching
• Gain reduction, summed Input, and summed output 6 segment LED meters

Tech Specs

Noise Floor (22 Hz - 22 kHz, unweighted):
-90 dBu Dry signal path
-86 dBu Wet signal path

Frequency Response:
+/- 0.1 dB 10 Hz to 200 kHz Dry signal path
+/- 1 dB 10 Hz to 110 kHz Wet signal path

THD+N(%): Dry Signal Path:
1 kHz- 0.001% @ 0 dBu 600 Ω load
1 kHz- 0.0008% @ +26 dBu 600 Ω load

THD+N(%): Wet Signal Path:
1 kHz- 0.01% @ 0 dBu 600 Ω load
1 kHz- 0.07% @ +20 dBu 600 Ω load

Input Impedance: 52 Ω balanced
Output Impedance: 20 kΩ balanced

CMRR: > 80 dB (22 to 22 kHz)
Crosstalk: -100 dB 10 Hz, -80 dB 20 kHz
IMD (SMPTE 4:1):
0.002% @ 0 dBu 600 Ω load
0.001% @ +24 dBu 600 Ω load

Maximum Input Level: +26 dBu
Maximum Output Level: +26 dBu (600 Ω minimum load Z)

Power Consumption:
+15.6 VDC = 180 mA
-15.6 VDC = 110 mA

Dimensions:
Half-rack wide (21.59 cm), 1 rack unit high (20.32), 4.6 cm deep (measured with knobs)

Weight: 893 g
Power Supply Weight: 0.483 kg
Power Supply Length: 2.3 m
