Product Description

Designed primarily for soffit-installed mains applications, the Arcturus leverages the same coaxial and axisymmetric technology from our well-regarded Quasar model. What sets the Arcturus apart is its unique integration of twin ring radial neodymium SEAS subwoofers – a design that delivers some of the lowest distortion and most linear output ever measured in our products.

These ultra-low distortion, exceptionally linear subwoofers feature a unique split-gap twin ring radial neodymium motor. The result? Exceptional symmetry and motor strength, even at extreme excursions. Put simply, these are the best 26cm subwoofers we've ever engineered or measured.

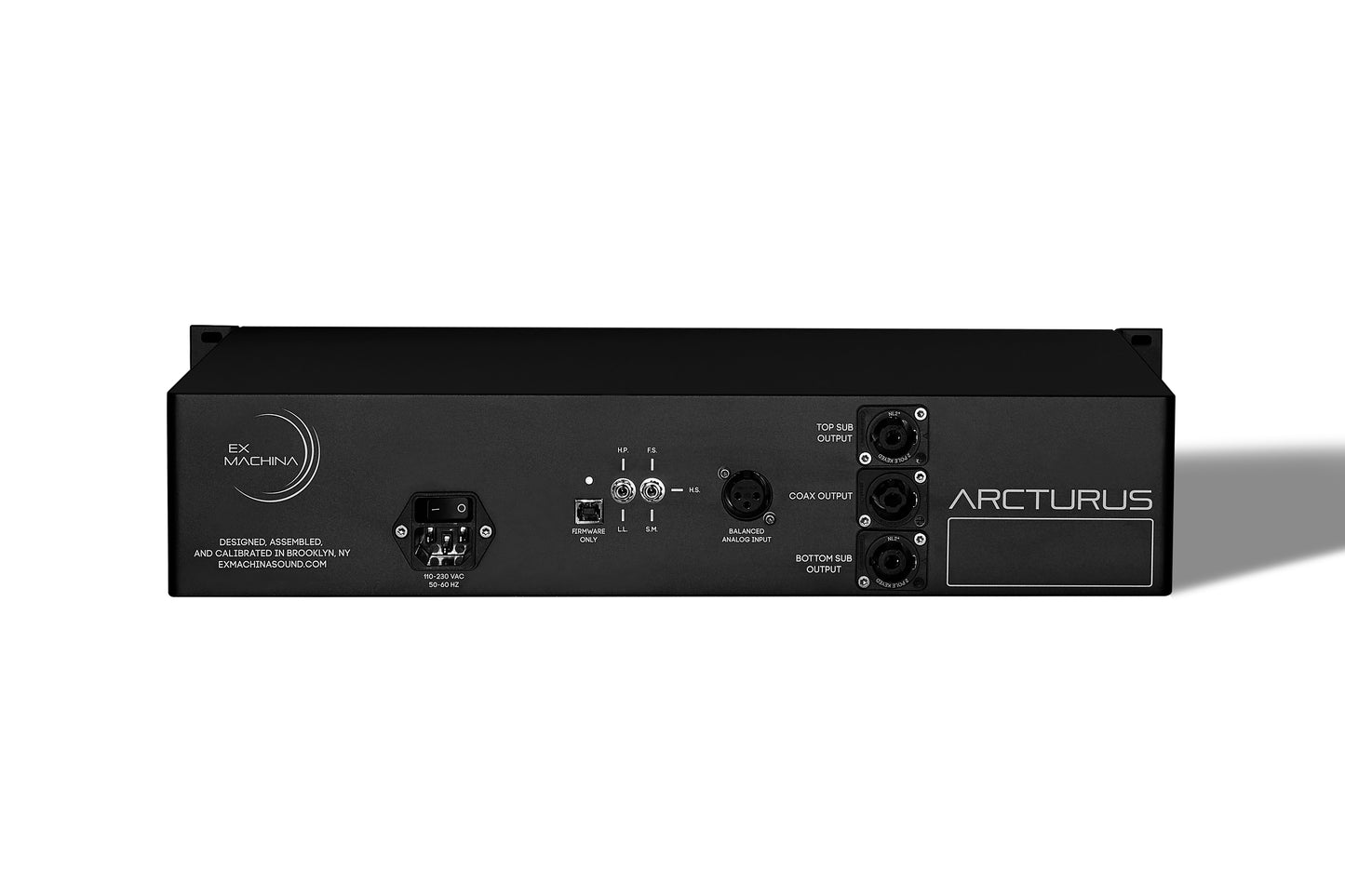

The Arcturus also integrates the same electronics as our Quasar model with an added 2RU remote AMP/DSP pack which will require top and bottom venting. The sealed Valchromat cabinets are stiff, dense, and well-damped, with none of the chuffing or group delay of ported designs. The ultra-rigid 38mm laminated front baffle handles the impressive output of the twin 26cm subwoofers, while the radiused insets for the subwoofers eliminate potential lip shadow from the tall boy surrounds.

PERFORMANCE

  • Linear Frequency Response: +/- 1db 28hz – 30khz (measured at 50cm cal position)
  • Low Frequency Cutoff: -6db at 18hz
  • Linear Phase Response: +/- 15° 20hz – 30khzMaximum Continuous SPL @ 1m: 117db, 112db @50hzTHD+N (94db @ cal position): < .5% Power Average 100hz – 30khzCoverage Angle: 90° conical

DRIVER COMPLEMENT

  • 176mm (7”) midrange, 25mm (1”) tweeter Custom SEAS/Ex Machina/Composite Sound Metamodal TX™ mid/high coaxial
  • Twin 270mm (10.5”) Flagship Twin Ring Radial Neodymium Extreme Series Architecture Subwoofers
CROSSOVERS
  • 200hz Sub/Mid, digital 4th order, phase corrected
  • 2khz Mid/Tweet, digital 4th order, phase corrected
AMPLIFIER COMPLEMENT
  • Subwoofers: Hypex NCAS500MP – 800W RMSMidrange: Hypex NCAS500MP – 100W RMSTweeter: Hypex NCAS500MP – 100W RMS

AMPLIFIER VENTILATION REQUIREMENTS

  • 1RU above and below the amplifier pack

DSP/CONVERSION

  • A/D Chipsets: AKM AK5572EN
  • D/A Chipsets: AKM AK4493EQ
  • DSP: 5th Gen SHARC+ AD21565

INPUT SENSITIVITY

  • 8vrms to full scale (default configuration)
  • 2vrms to full scale (optional high gain configuration)

MASS & DIMENSIONS

  • 839mm H x 338m W x 355mm D (33″ x 13.3″ x 14″)
  • 43kg (95lbs)
  • 2RU Amplifier/DSP Pack - 5kg (11lbs)
