Product Description

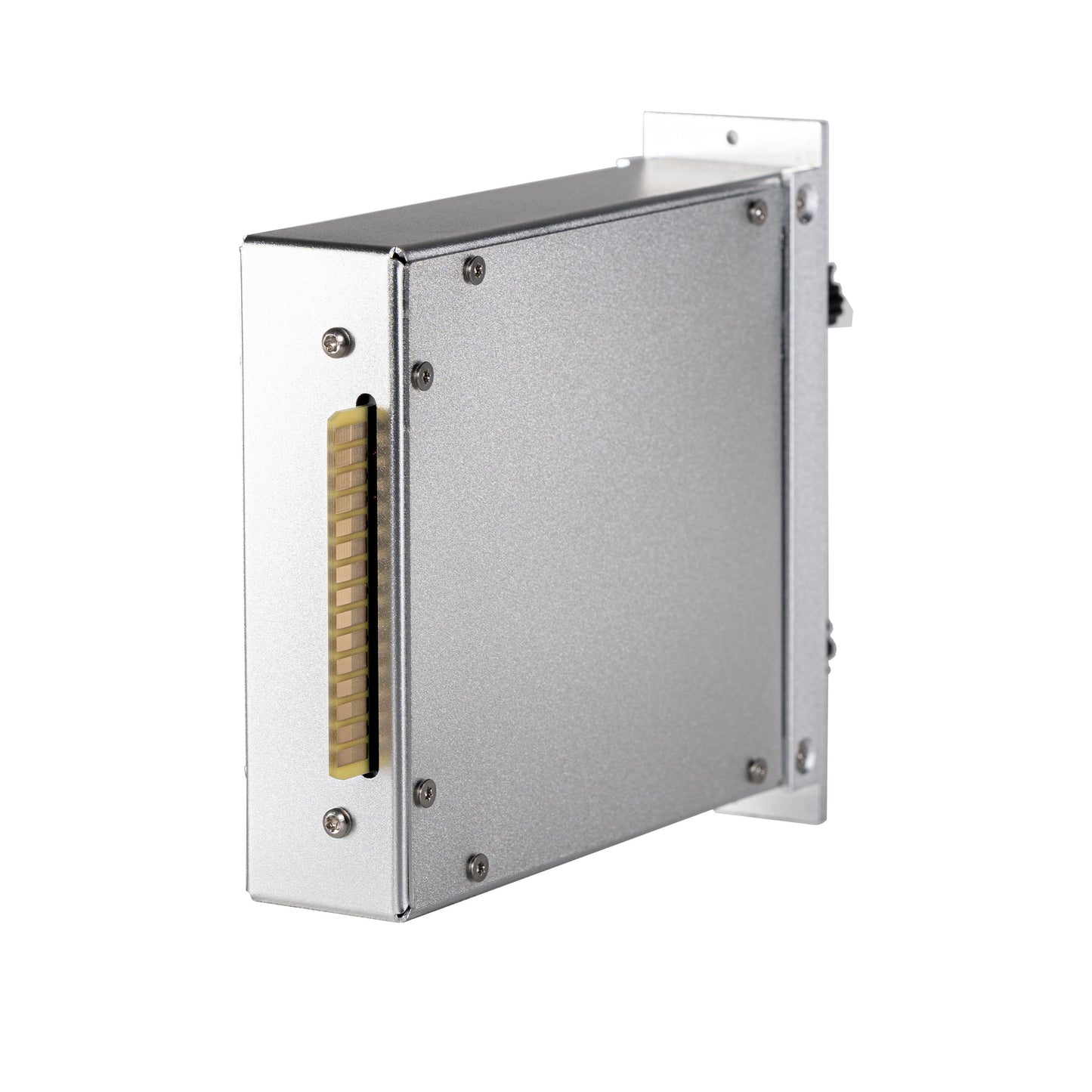

The STX 100 is a 500 Series version of the classic Spectra 1964 101 amplifier circuit that uses the same circuit topology that the heart of the brand's famous recording desks made over 40 years ago. With an unequaled and expanded headroom, low noise and distort, extended harmonic content, this modules have been used on countless hit records across decades and helped define the sound of American music.

The STX 100 is a high-bandwidth microphone preamp with 64dB of gain and a 10Hz to 50KHz frequency response. A 10dB input pad and a dual potentiometer offers continuously variable input pad and output level controls allow the STX 100 to be used with both microphone and line level sources.

Most, if not all, conventional analog audio amplifiers live in a world whereby dynamic range limitations are dictated by audio program peaks. Audio program peaks, which can average 6dB to over 20dB, effectively reduce the undistorted output of a given amplifier by that peak to average ratio. The reduction in output limits headroom, (dynamic range), increases numerous forms of distortion, and limits the harmonic content of the amplified audio signal.

The STX series lives in the VU world, irrespective of peak to average transient audio program signal material. The STX series products are not affected by the high transient peak excursions. The first and second stages of the STX 100 utilize independent LED overload indicators to monitor program overload conditions. The result is faster set-up time with consistent and definable results. Drums sound like you are positioned next to them. Guitars have full harmonic content. The dynamic range of vocals is preserved.

To complete the classic Spectra Sonics console channel configuration, the STX 100 has integrated connections for inserting the STX 500 2-Band Passive Equalizer module.
