The Flock Audio PATCH VT completes the missing link in the PATCH Series of products I/O combinations. Utilizing Patented & Award winning advanced analog routing technology, PATCH VT incorporates 128 Channels (64 In x 64 Out) in a 3U Chassis Design. Equipped with 2 Front XLR/Combo Inputs and 2 Front XLR Outputs for easy on the fly integration of mics, instruments & analog hardware without the need to access the rear panel.
16 Total - DB25/DSUB Connectors (8 Channels per/connector) populate the rear panel of the PATCH VT alongside a Threaded Locking USB Port for CPU Host Control and Master Power Input/Rocker Switch. PATCH VT also includes other advanced features like Sleep/Wake Functionality, Audio Input Detection and Compatibility with XTH Cable Management & Hanger Accessory (Sold Separately).

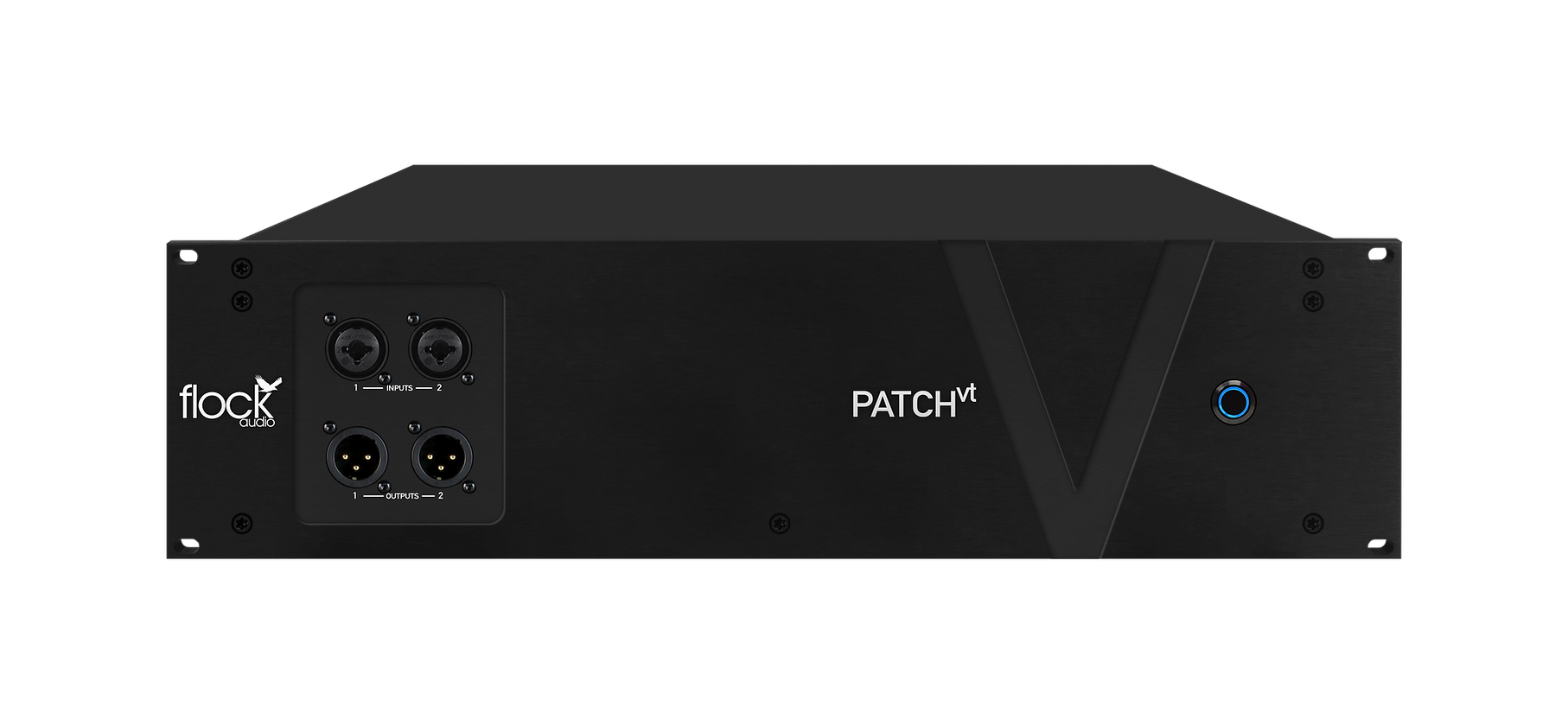

Beautifully designed with a deep black anodized aluminum front panel with its signature V cutout, accessible Front I/O & Blue LED Ring Sleep/Wake Button, makes the front panel - simple, stunning and functional. The rigid powder coated body and rear panel includes DB25/DSUB Connectors for easy analog hardware integration via DB25 Breakout Cables, Locking USB Connector and IEC Power Cable (Included). The simplistic hardware design boast a powerful analog routing experience with no latency, no AD/DA Conversion and sonic transparency with deep user functionality.
- 128 Point Connections (64 Inputs / 64 Outputs)
- DB-25/D-SUB Tascam Standard Pinout Format Connectors (Rear Panel)
- 32 Assignable Independent Channels of 48V Phantom Power
- Front Panel - Includes (2 Combo TRS/XLR Input & 2 XLR Output)
- PATCH APP & PATCH APP DX - Routing Software (OSX, Windows, iOS) Compatibility
- Create, Store & Recall Routings in Seconds
- Create Complex Multing Combinations w/ No Level or Impedance Changes
- No AD/DA Conversion, No Latency, 100% Sonically Transparent Analog Routing
- Remote Sleep/Wake Mode Control of PVT Hardware
- Input Signal Audio Detection Integration
- Patented Flock Audio Matrix Technology
- Multiple Unit Expansion with 10 of any PATCH Series Model (PATCH LT, PATCH, PATCH VT, PATCH XT)
- Internal Power Supply w/ IEC Cable Included
- 6 Ft. - USB 2.0 (USB-A to USB-B) Threaded Locking USB Connector - Cable Included
- Unit Dimensions: 3U - 5.25”(H) x 19” (L) x 13” (D) - 24 lbs
- Compatible with XTH Cable Hanger/Management Accessory (Product Code: XTH Cable Hanger) Compatible
