Apogee Symphony I/O Mk II 2x6 SE

Regular price €3.390,00

€2.756,10 (ex VAT)
Usually ships to you within 1-2 weeks.
Did you find a better price online? Get in touch and give us a chance to price match it.
Arda Suppliers will contribute 1% of your purchase to remove CO₂ from the atmosphere when using card payments. Learn more at Stripe Climate

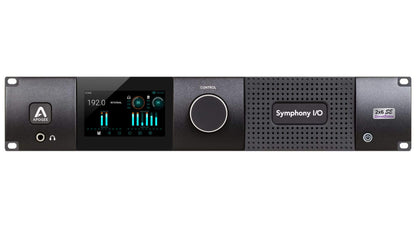

Apogee Symphony I/O Mk II 2×6 Special Edition offers the highest quality AD/DA conversion of the Symphony series. Designed specifically for mastering engineers whose critical work demands ultimate sonic performance, 2×6 SE takes advantage of the latest advancements in digital and analog audio technology to offer inputs with 124 dB (A) of dynamic range, THD+N of -116dB and outputs with 131dB (A) dynamic range and an astonishingly low THD+N of -118dB. We dare you to compare these specifications to our competitors – 2×6 SE’s combined specs outperform just about any AD/DA converter available today.

Symphony I/O Mk II 2×6 SE is available preconfigured for Thunderbolt or Pro Tools HD or it can be purchased as an expansion module for any existing Mk II configuration.

Specs:

Inputs

  • Analog IN: 2 balanced inputs on 2 female XLR connectors
  • AES IN: Stereo input on 1 female XLR connector
  • Optical IN: Supports ADAT, SMUX & S/PDIF-
  • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
    • SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
    • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
  • S/PDIF Coax IN: 2 channels, up to 192 kHz on 1 RCA connector

A/D

  • THD+N of -116dB @23dBu (0.00016%) unweighted
  • Dynamic range: 124 dB (A) of dynamic range
  • Maximum input levels:
    • +4dB setting: +24dBu
    • -10dB setting: +6dBV
  • Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)
  • Input impedance: 10K

Outputs

  • Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector
  • AES OUT: Stereo output on 1 male XLR connector
  • Optical OUT: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
    • SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
    • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
  • S/PDIF Coax OUT: 2 channels, up to 192 kHz on 1 RCA connector

D/A

  • THD+N of -118dB @ 22dBu (0.00013%) unweighted
  • Dynamic range: 131dB (A) dynamic range
  • Max output levels – ∞ to +24dBu
  • Frequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)
  • Output impedance: 25 Ohm
